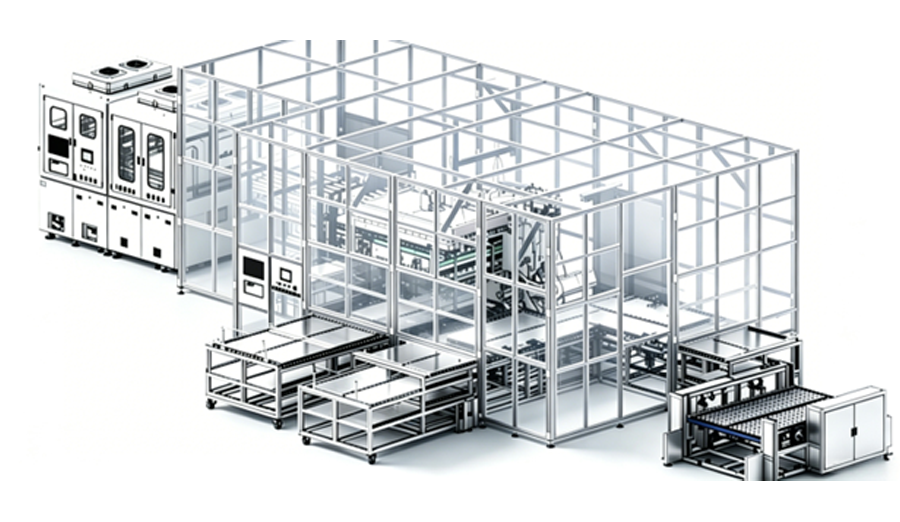

Equipment size: 15000mm * 5700mm * 3700mm (L * W * H)

Equipment function:

    • Docking with die-cutting machine for visual inspection of optical film

    • Appearance inspection items: bubbles, bumps, foreign objects, scratches, marks on raw materials

Automatic detection, flipping, coding, and sorting of finished products after die-cutting

The belt is automatically cleaned, and the cleanroom is equipped with FFU according to the area ratio to ensure that the product is pollution-free throughout the entire process

    • Quickly switch between different formulas, automatically locate, grab, and sort to different boxes

Automatically transport the full material box to the shuttle bus

Performance indicators:

    • Product size: L1400-2300mm W900-1500mm

    •CT≤14s UPH≥230

    • Missed detection rate ≤ 0.5%, over kill rate ≤ 5%

Technical Features:

The cleanroom is equipped with FFU, and the belt has automatic cleaning function, which can be compatible with formula switching of various specifications of films

High speed online coding, QR code level B or above;

Application scenario: Docking with die-cutting machines to achieve appearance inspection and automatic classification

Applicable products: film products
