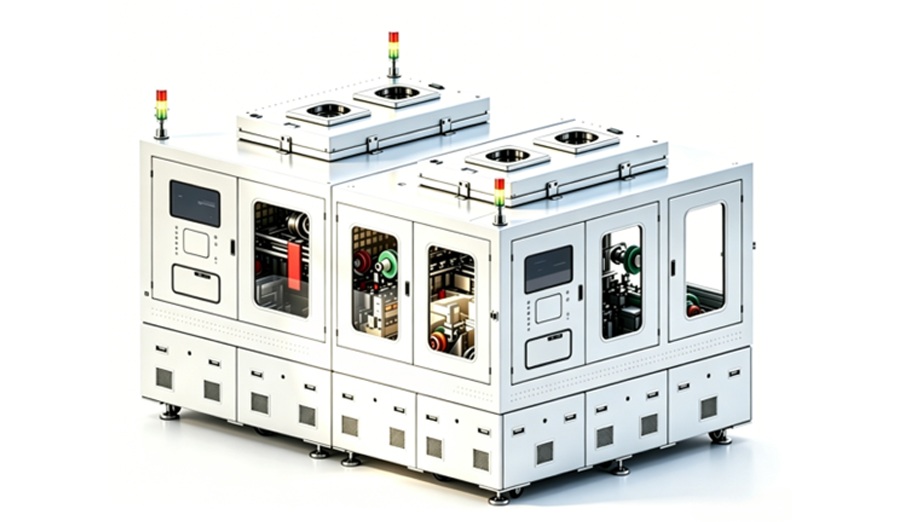

Harrison's incoming materials undergo online coding, size and appearance inspection, NG rejection, and OK replenishment
• Appearance inspection items: fuzz, scratches, glue overflow, foreign objects, bubbles, dirt, missing pieces, etc
NG automatic removal, automatic replenishment function
• Product traceability system
The bottom film material strip is not threaded and needs to be rewound
• Class 100 dust-free
Performance indicators:
• Detection accuracy: ± 0.0025mm
OK replenishment tolerance: ± 0.15mm (CPK ≥ 1.33)
• Fitting yield: ≥ 98%
•CT≤0.72S，UPH≥5000PCS
• Missed detection rate ≤ 0.5%, over kill rate ≤ 5%
Technical Features:
High speed online coding, QR code level B or above
Online detection accuracy reaches ± 0.0025mm
• Material strip without threading and rewinding
Three channel independent operation
Application scenario: Online coding, detection, NG rejection, and OK replenishment of film roll products.
Applicable products: Small parts such as film rolls
