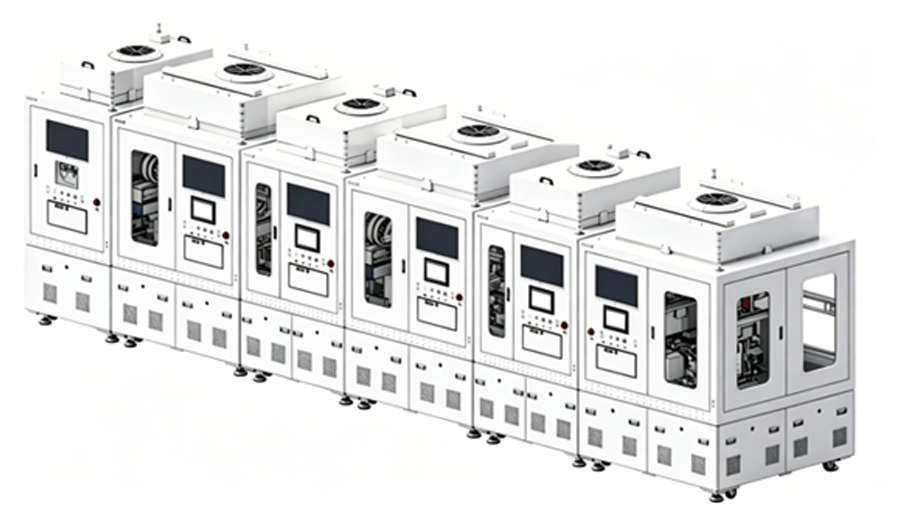

Equipment size: 8000mm * 1600mm * 1900mm (L * W * H)

Equipment function:

ARC incoming material appearance inspection, online size inspection and appearance inspection of bonded products

    • Appearance inspection items: displacement, ARC cracking, embossing, impurities, scratches, bumps, bubbles

    • Finished material roll NG automatic removal, automatic replenishment, roll tension control

ARC material retrieva1/bonding/pressure holding real-time detection system

Blue film QR code online spraying, ARC and blue film traceability system.

The bottom film material belt does not stop, the roll is changed, and the bottom film material belt is pulled and automatically corrected

    • Class 100 dust-free

Performance indicators:

ARC finished product bonding accuracy, XY spacing tolerance: ± 0.15mm (CPK ≥ 1.33)

PF bonding finished product, concentricity tolerance: ± 0.05mm (CPK ≥ 1.33)

    • Fitting yield: ≥ 98%

    •CT≤2S，UPH≥1500PCS

    • Missed detection rate ≤ 0.5%, over kill rate ≤ 10%

Technical features: Integrated AOI inspection of incoming materials, installation and post installation dimension inspection, and finished product AOI inspection on the entire line, with high bonding accuracy and fast speed

Application scenarios: 3C/semiconductor/new energy die-cutting product mounting

Applicable products: Die cut products
